CAMPETTO S
Campetto S (Item no. 250521)
underfloor power distributor, C250, stainless steel 1.4301 (V2A), incl.
hard rubber distribution box type 7200 and hard rubber junction box
Steel construction with lid that can be filled up with any material (e.g.
concrete). Two gas springs for easy opening, hard rubber distribution
box according to customer requirements. Construction in stainless steel
1.4301 (V2A), square lock 10 mm (incl. key), casing with closed bottom
and hole Ø 50 mm for drainage
operating mode: closed, load capacity C250.
Mounting dim.: 560×310×650 mm (Dimension of recess)
Vulcanized hard rubber power distribution box type 7200 with flap in
Plexiglass, color casing: black RAL 9011, protection class casing: IP65
Equipment:
- 1 socket CEE 16A 400V 3P+N+E IP67
- 1 MCB CLARIO 1N - 13A 'C' 6kA
- 1 RCBO CLARIO 3N - 16A / 30mA 'C' 6kA
- 1 PTC heating 10W / 230V
- 1 main line terminal LEIPOLD 5×(4-16mm²)
- 1 cable gland M16×1.5 IP68 (cable Ø 5-10mm)
- 1 angled cable gland M25×1.5 IP68 (cable Ø 13-18mm)

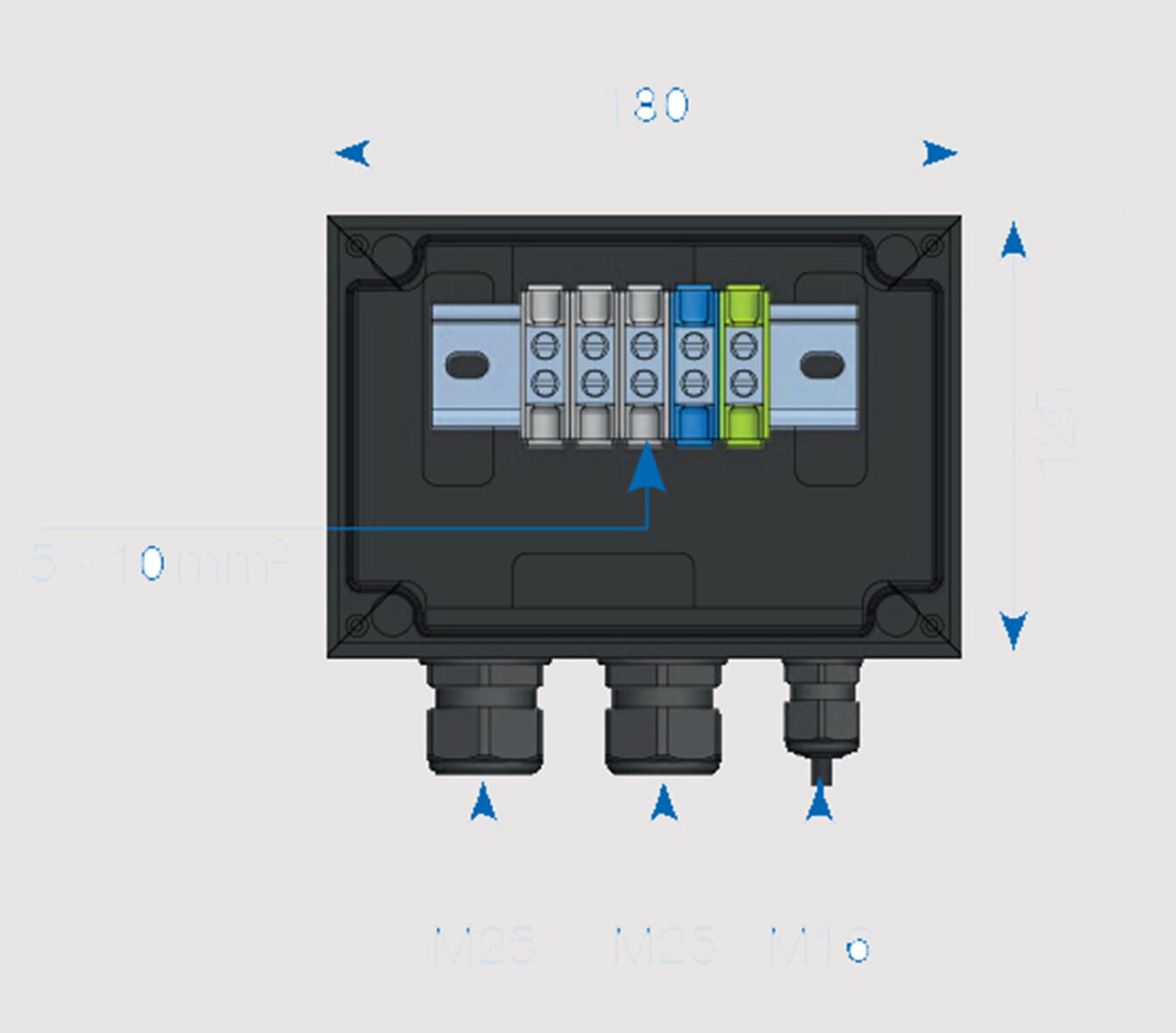

Junction box:
- 1 hard rubber junction box type 1812
- 1 terminal block WOERTZ 5×10mm²
- 1 cable gland M16×1.5 IP68 (cable Ø 5-10mm)
- 2 cable glands M25×1.5 IP68 (cable Ø 13-18mm)
Complete, ready for connection
Please note:
The cover system is not sealed against surface water; drainage of the
casing should be provided by the customer. The excavation work and
the correct assembly of the construction (GIFAS components included)
conforming to standards must be carried out by the customer.
Customer has to take care of professional foundation and mounting of
underfloor distributor systems (max. load capacity 250 kN) as well as
professional connection to drainage system. See manual for mor details
