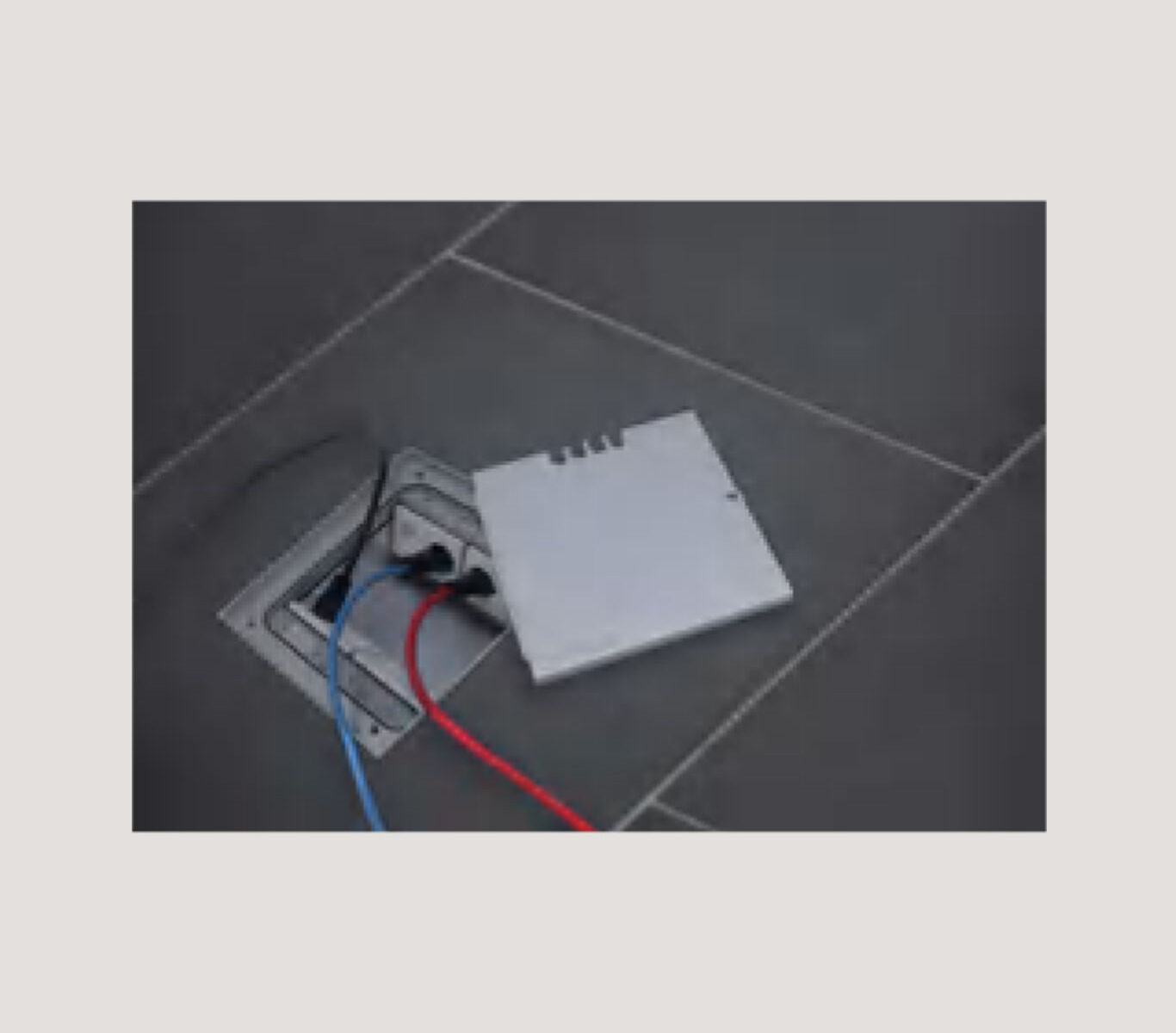

Fonto 8301

Floor socket outlet with removable cover, level-adjustable frame and 4×cable outlet (Levelling support available optionally)

Technical data

Dimensions (l×w×h) : 240×240×95 mm
Mounting depth : approx. 95 mm (standard version)
– level-adjustable : 90 - 100 mm
– with levelling support :105 - 150 mm
– with threaded pin extension :105* - 250 mm
Material : Aluminium, colourless anodised salt- and seawater-proof
IP protection class in closed mod : IP65, suitable for cleaning with wet sweepers ;
– plugged in mode : IP20, only dry cleaning
Cover : removable
Cover closure type :Snap lock
Cable outlet : yes
Load capacity: – in closed mode : 2 t (20 kN)
Feed-in cable :6×M25
Level-adjustable after installation :yes (+/-5 mm)
Levelling support : yes (optionally

Remarks / Features

– level-adjustable frame (+/–5 mm) in the offset position for simple adjustment to the finished floor level
– for 8×mounting socket insert 45×45×4 mm (e.g. T23, Schuko, RJ45 cat6a, TV, HDMI, USB etc.)
– 6×centre punch marks for additional holes in the bottom of the housing
– suitable for drive-over in closed mode

FONTO 8301, Floor socket outlet with cover and cable outlet, closed IP65, 240×240×95 mm, anodised aluminium, level-adjustable +/–5 mm

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…).

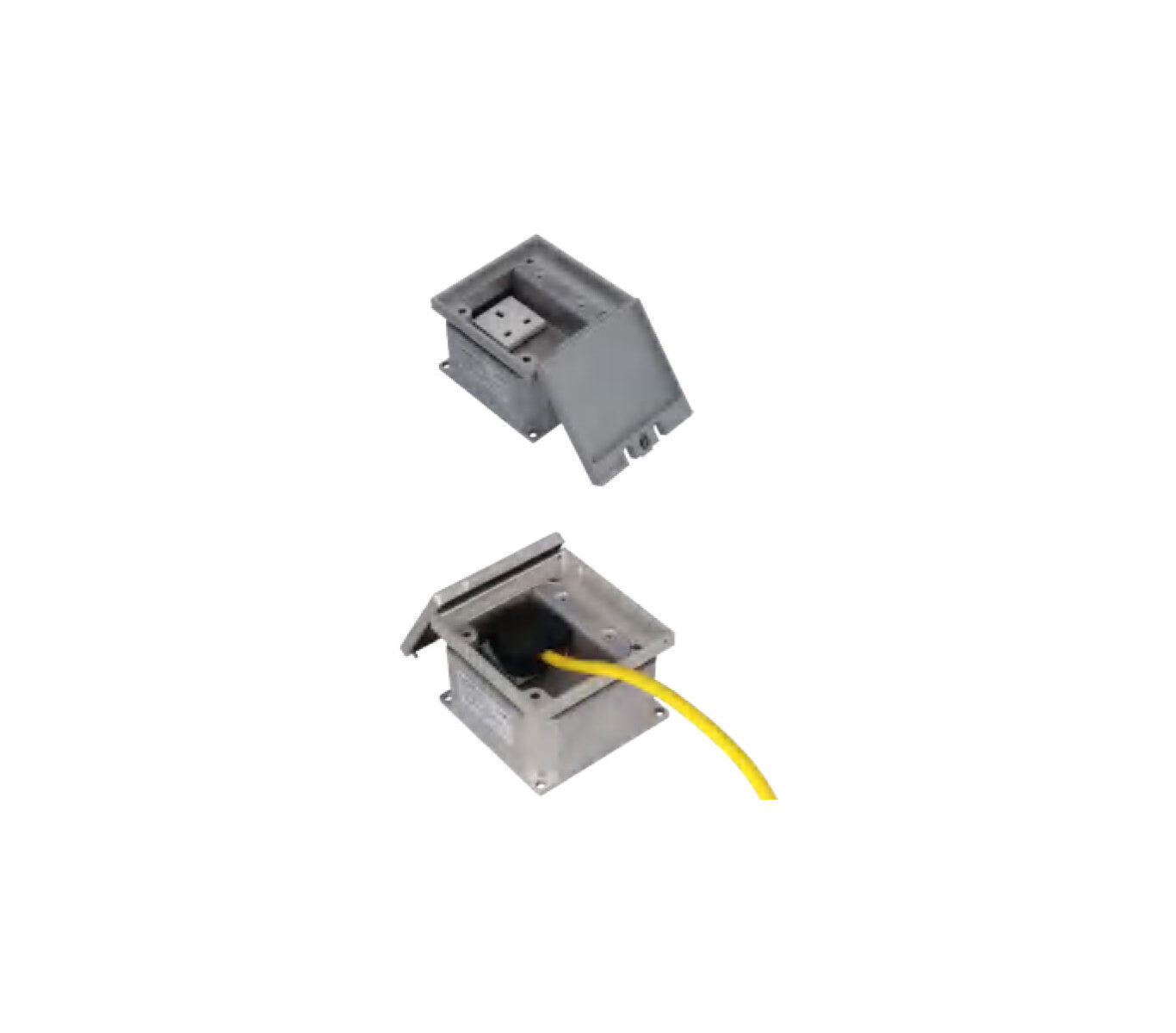

Fonto 4308

Floor socket outlet with removable and fillable cover, level-adjus- table frame, 2×cable outlet (Levelling support available optionally)

Technical data

Dimensions (l×w×h) : 119×119×83 mm
Mounting depth : approx. 83 mm (standard version)
– level-adjustable : 77 - 89 mm
– with levelling support :95 - 140 mm
– with threaded pin extension : 95* - 240 mm
Material : Aluminium, colourless anodised salt- and seawater-proof
IP protection class in closed mod : IP65, suitable for cleaning with wet sweepers ; IP65 is achieved as the cover can be turned
– plugged in mode : IP20, only dry cleaning
Cover : removable, fillable
Cover closure type :Snap lock
Cable outlet : yes
Load capacity: – in closed mode : 2 t (20 kN)
Feed-in cable : 2×M25
Level-adjustable after installation :yes (+/–6 mm)
Levelling support : yes (optionally

Remarks / Features

– level-adjustable frame (+/–6 mm) in the offset position for simple adjustment to the finished floor level
for 2×mounting socket insert 45×45×4 mm (e.g. T23, Schuko, RJ45 cat6a, TV, HDMI, USB etc.) or 1× British Standard in combination with insert carrier protective cardboard cover to prevent damage during the construc- tion phase (integrated in the packaging)
– 2×centre punch marks for additional holes in the bottom of the housing

FONTO 4308, Floor socket outlet with cover and cable outlet, closed IP65, 119×119×83 mm, anodised aluminium, level-adjustable +/–6 mm

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…)

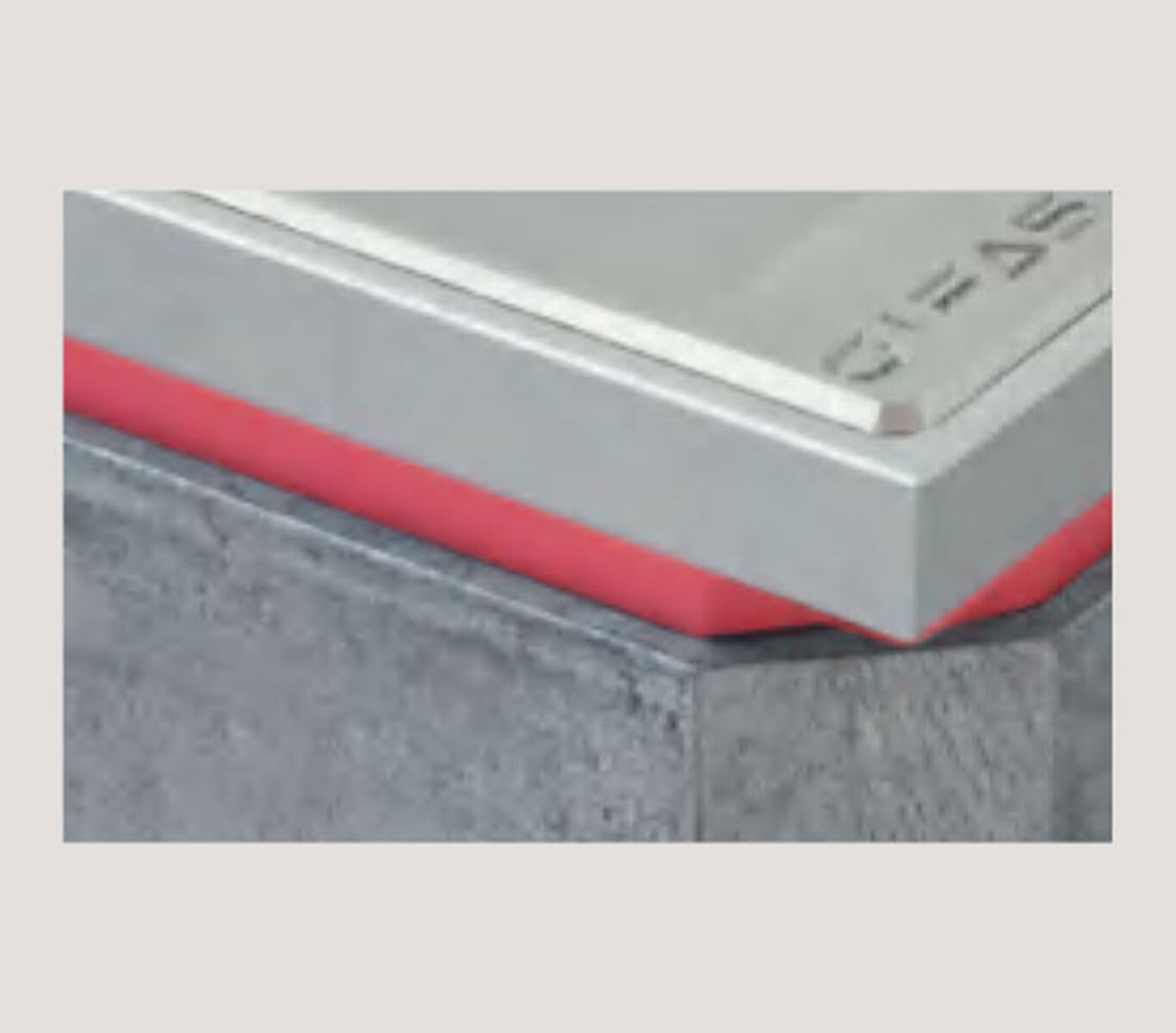

Fonto 4301

Floor socket outlet with removable cover, level-adjustable frame and 2×cable outlet (Levelling support available optionally)

Technical data

Dimensions (l×w×h) : 119×119×83 mm
Mounting depth : approx. 83 mm (standard version)
– level-adjustable : 77 - 89 mm
– with levelling support :95 - 140 mm
– with threaded pin extension : 95* - 240 mm
Material : Aluminium, colourless anodised salt- and seawater-proof
IP protection class in closed mod : IP65, suitable for cleaning with wet sweepers ; IP65 is achieved as the cover can be turned
– plugged in mode : IP20, only dry cleaning
Cover : removable
Cover closure type :Snap lock
Cable outlet : yes
Load capacity: – in closed mode : 2 t (20 kN)
Feed-in cable : 2×M25
Level-adjustable after installation :yes (+/–6 mm)
Levelling support : yes (optionally

Remarks / Features

– level-adjustable frame (+/–6 mm) in the offset position for simple adjustment to the finished floor level
for 2×mounting socket insert 45×45×4 mm (e.g. T23, Schuko, RJ45 cat6a, TV, HDMI, USB etc.) or 1× British Standard in combination with insert carrier protective cardboard cover to prevent damage during the construc- tion phase (integrated in the packaging)
– 2×centre punch marks for additional holes in the bottom of the housing

FONTO 4301, Floor socket outlet with cover and cable outlet, closed IP65, 119×119×83 mm, anodised aluminium, level-adjustable +/–6 mm

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…)

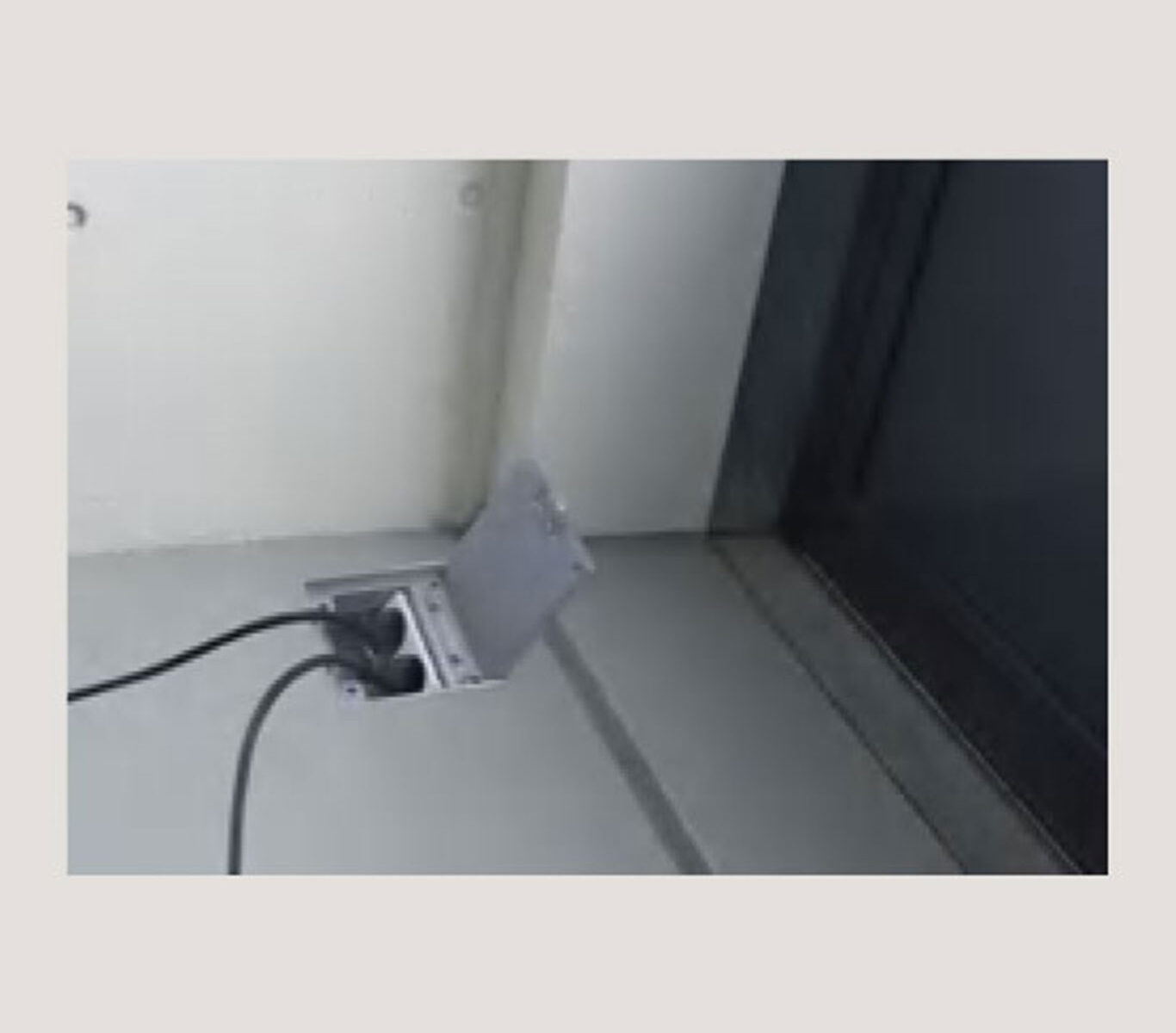

Fonto 4295

Floor socket outlet with hinged cover, level-adjustable frame and 2×cable outlet (Levelling support available optionally)

Technical data

Dimensions (l×w×h) : 119×119×83 mm
Mounting depth : approx. 83 mm (standard version)
– level-adjustable : 77 - 89 mm
– with levelling support :95 - 140 mm
– with threaded pin extension : 95* - 240 mm
Material : Aluminium, colourless anodised salt- and seawater-proof
IP protection class in closed mod :IP20, only dry cleaning
– plugged in mode : IP20, only dry cleaning
Cover : Hinged cover, lid hinge bar
Cover closure type :Snap lock
Cable outlet : yes
Load capacity: – in closed mode : 2 t (20 kN)
Feed-in cable : 2×M25
Level-adjustable after installation :yes (+/–6 mm)
Levelling support : yes (optionally

Remarks / Features

– level-adjustable frame (+/–6 mm) in the offset position for simple adjustment to the finished floor level
– for 2×mounting socket insert 45×45×4 mm (e.g. T23, Schuko, RJ45 cat6a, TV, HDMI, USB etc.)
– protective cardboard cover to prevent damage during the construc- tion phase (integrated in the packaging)
– 2×centre punch marks for additional holes in the bottom of the housing

FONTO 4295, Floor socket outlet with hinged cover and cable outlet, closed IP20, 119×119×83 mm, anodised aluminium, level-adjustable +/–6 mm

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…)

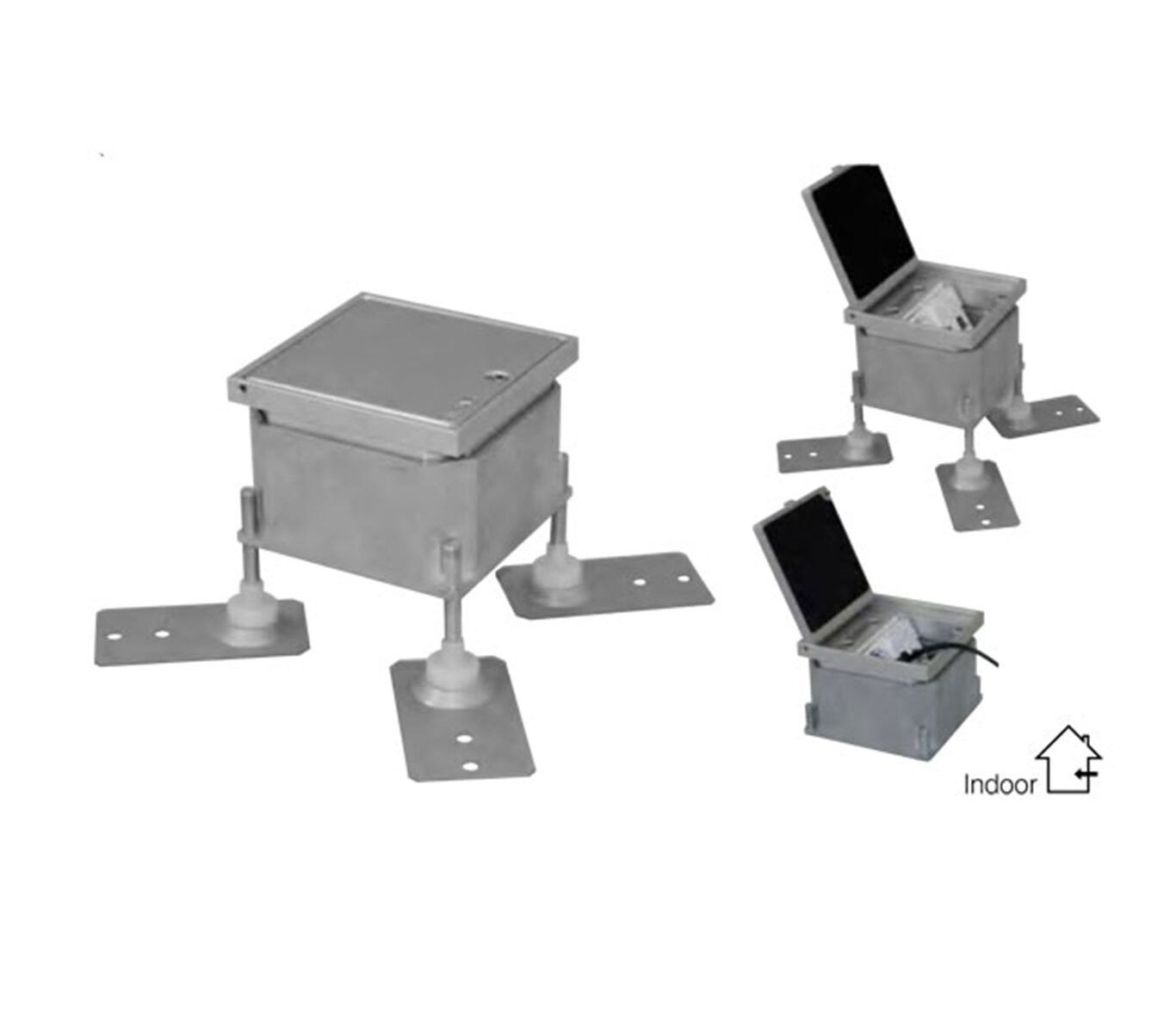

Fonto 4290

Floor socket outlet with hinged cover and level-adjustable frame (Levelling support available optionally

Technical data

Dimensions (l×w×h) : 110×95×83 mm
Mounting depth : approx. 83 mm (standard version)
– level-adjustable : 77 - 89 mm
– with levelling support :95 - 140 mm
– with threaded pin extension : 95* - 240 mm
Material : Aluminium, colourless anodised salt- and seawater-proof
IP protection class in closed mod : IP65, suitable for cleaning with wet sweepers
– plugged in mode : IP20, only dry cleaning
Cover : Hinged cover, lid hinge bar
Cover closure type :Snap lock
Cable outlet : no
Load capacity: – in closed mode : 2 t (20 kN)
Feed-in cable : 2×M25
Level-adjustable after installation :yes (+/–6 mm)
Levelling support : yes (optionally

Remarks / Features

– level-adjustable frame (+/–6 mm) in the offset position for simple adjustment to the finished floor level
– for 2×mounting socket insert 45×45×4 mm (e.g. T23, Schuko, RJ45 cat6a, TV, HDMI, USB etc.)
– protective cardboard cover to prevent damage during the construc- tion phase (integrated in the packaging)
– 2×centre punch marks for additional holes in the bottom of the housing

FONTO 4290, Floor socket outlet with hinged cover without cable outlet, closed IP65, 119×119×83 mm, anodised aluminium, level-adjustable +/–6 mm

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…).

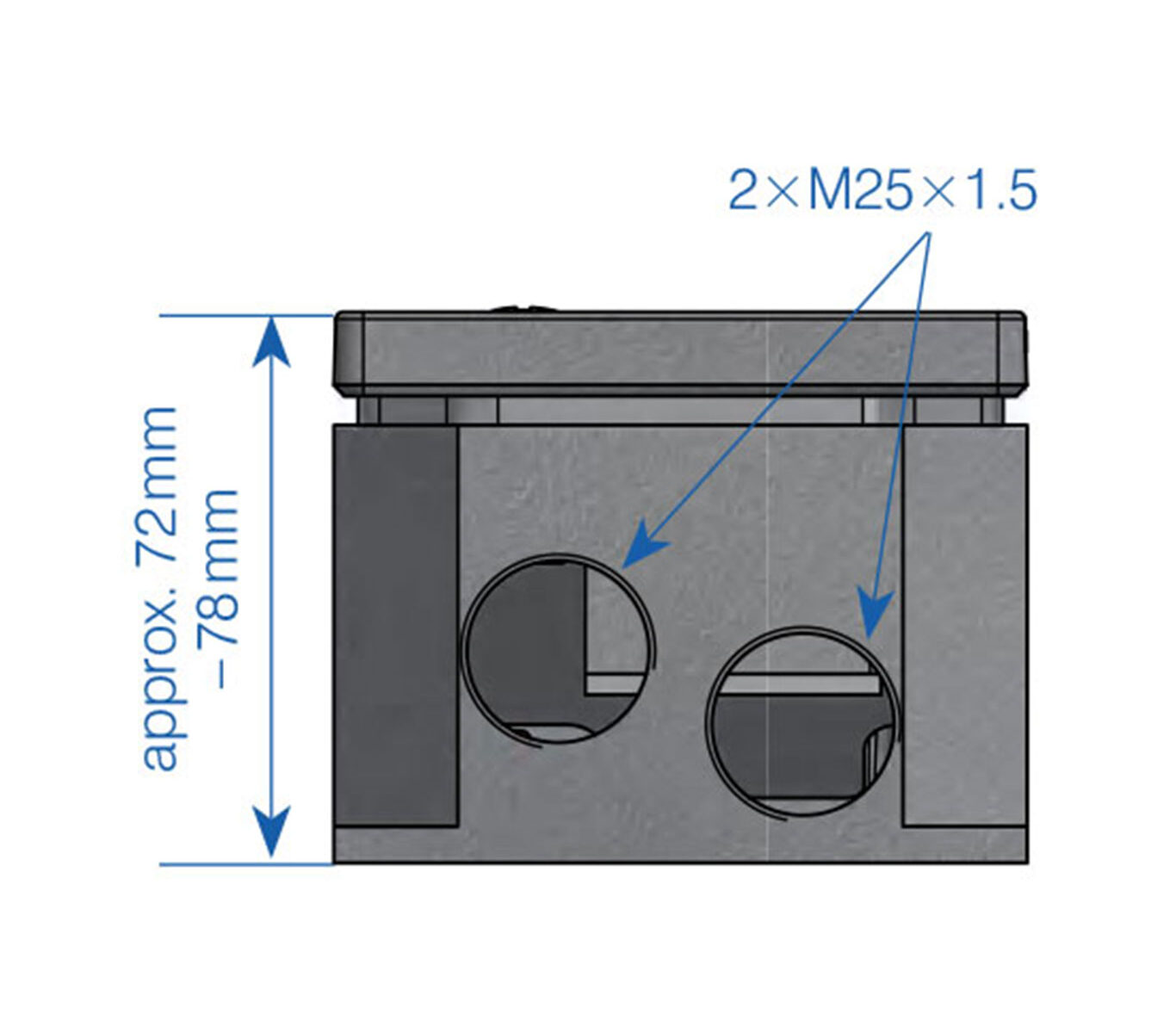

Fonto 2005

Floor socket outlet with hinged cover and level-adjustable frame (Levelling support available optionally)

Technical data

Dimensions (l×w×h) : 110×95×75 mm
Mounting depth : approx. 75 mm (standard version)
– level-adjustable : 72 - 78 mm
– with levelling support : 88 - 130 mm
– with threaded pin extension : 88* - 230 mm
Material : Aluminium natural
IP protection class in closed mod : IP20, only dry cleaning
– plugged in mode : IP20, only dry cleaning
Cover : Hinged cover, lid hinge bar
Cover closure type : Philips screw
Cable outlet : yes
Load capacity: – in closed mode : 2 t (20 kN)
Max. conductor cross-section : defined by used module
Feed-in cable : 2×M25
Level-adjustable after installation : yes (+/–3 mm)
Levelling support : yes (optionally

Remarks / Features

– level-adjustable frame (+/–3 mm) in the offset position for simple adjustment to the finished floor level
– flush mounted floor socket with hinged cover incl. 1×cable outlet
– for 1×insert 45×45×4 mm (e.g. T23, Schuko, RJ45, TV, HDMI, USB etc.)
– suitable for drive-over in closed mode
– 2×centre punch marks for additional holes in the bottom of the housing
not suitable for sockets according to British standard

FONTO 2005 Floor socket outlet with hinged cover, with cable outlet, closed IP20, aluminium, grinded, 110×95×75 mm

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…)

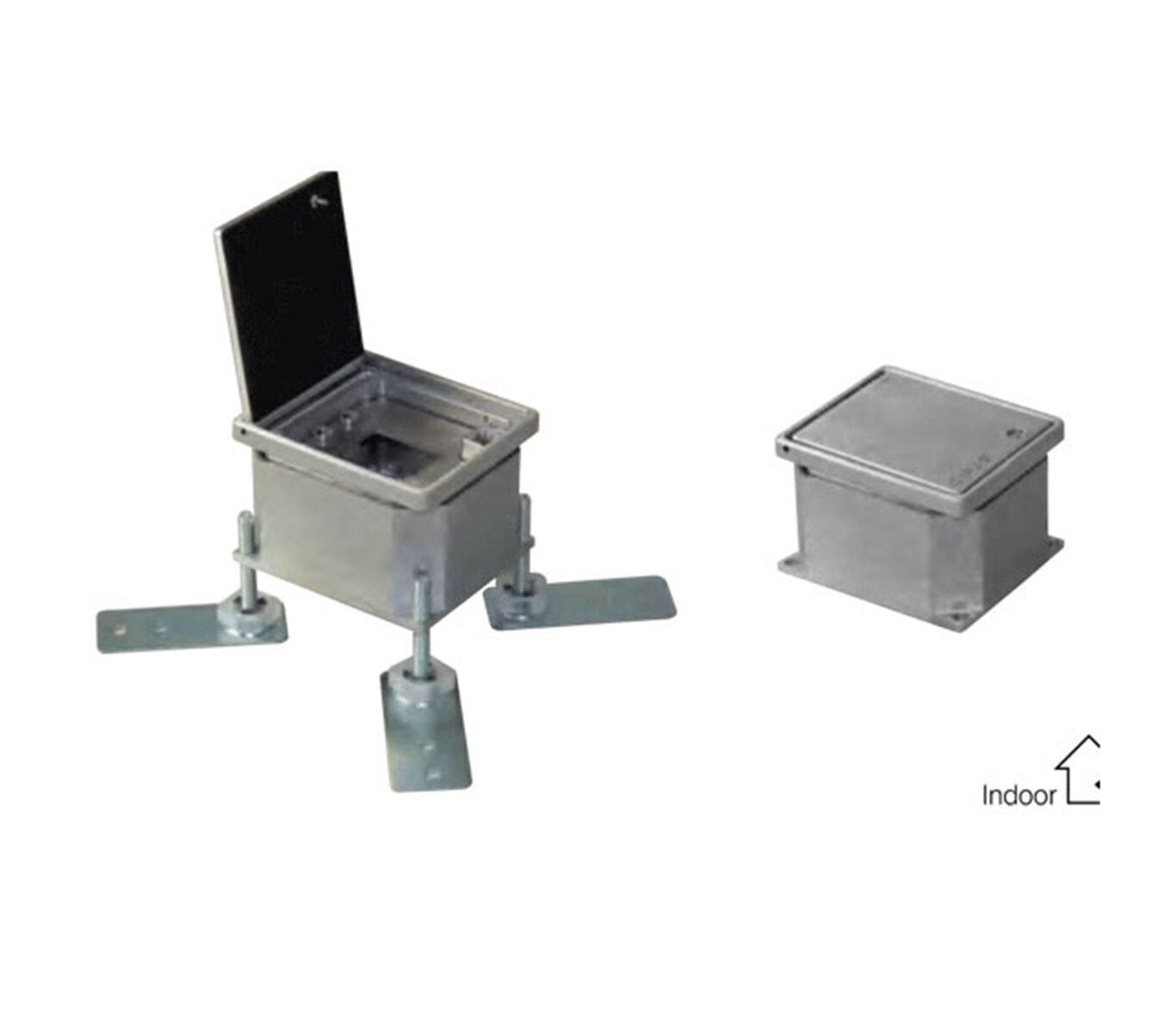

Fonto 2000

Floor socket outlet with hinged cover and level-adjustable frame(Levelling support available optionally)

Technical data

Dimensions (l×w×h) : 110×95×75 mm
Mounting depth : approx. 75 mm (standard version)
– level-adjustable : 72 - 78 mm
– with levelling support : 88 - 130 mm
– with threaded pin extension : 88* - 230 mm
Material : Aluminium natural
IP protection class in closed mod : IP65, suitable for cleaning with wet sweepers
– plugged in mode : IP20, only dry cleaning
Cover : Hinged cover, lid hinge bar
Cover closure type : Philips screw
Cable outlet : no
Load capacity: – in closed mode : 2 t (20 kN)
Max. conductor cross-section : defined by used module
Feed-in cable : 2×M25
Level-adjustable after installation : yes (+/–3 mm)
Levelling support : yes (optionally

Remarks / Features

– level-adjustable frame (+/–3 mm) in the offset position for simple adjustment to the finished floor level
– flush mounted floor socket with hinged cover incl. 1×cable outlet
– for 1×insert 45×45×4 mm (e.g. T23, Schuko, RJ45, TV, HDMI, USB etc.)
– suitable for drive-over in closed mode
– 2×centre punch marks for additional holes in the bottom of the housing
not suitable for sockets according to British standard

FONTO 2005 Floor socket outlet with hinged cover, with cable outlet, closed IP20, aluminium, grinded, 110×95×75 mm

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…).

Campetto XL

Campetto XL (Item no. 250531)

underfloor power distributor, C250, stainless steel 1.4301 (V2A), incl. hard rubber distribution box type 7800 and hard rubber junction box

Steel construction with lid that can be filled up with any material (e.g. concrete). Two gas springs for easy opening, hard rubber distribution box according to customer requirements. Construction in stainless steel 1.4301 (V2A), square lock 10 mm (incl. key), casing with closed bottom and hole Ø 50 mm for drainage operating mode: closed, load capacity C250.

Mounting dim.: 860×510×750 mm (Dimension of recess)

Vulcanized hard rubber power distribution box type 7800 with flap in Plexiglass, color casing: black RAL 9011, protection class casing: IP65

Equipment:

1 socket British standard 13A 230V P+N+E IP66
1 socket CEE 16A 400V 3P+N+E IP67
1 socket CEE 32A 400V 3P+N+E IP67
1 socket CEE 63A 400V 3P+N+E IP67
2 sockets RJ45 Cat.6 IP67
1 main switch 63A 3P
1 MCB CLARIO 1N - 13A 'C' 6kA
1 MCB SE 1N - 13A 'C' 6kA
1 MCB SE 3N - 16A 'C' 6kA
1 MCB SE 3N - 32A 'C' 6kA
1 RCD SE 3N - 63A / 30mA
1 PTC heating 10W / 230V
1 main line terminal LEIPOLD 5×(4-16 mm²)
3 cable glands M16×1.5 IP68 (cable Ø 5-10 mm)
1 angled cable gland M32×1.5 IP68 (cable Ø 18-25 mm)

Junction box:

Complete, ready for connection

Please note:

The cover system is not sealed against surface water; drainage of the casing should be provided by the customer. The excavation work and the correct assembly of the construction (GIFAS components included) conforming to standards must be carried out by the customer.

Customer has to take care of professional foundation and mounting of underfloor distributor systems (max. load capacity 250 kN) as well as professional connection to drainage system. See manual for mor details.
