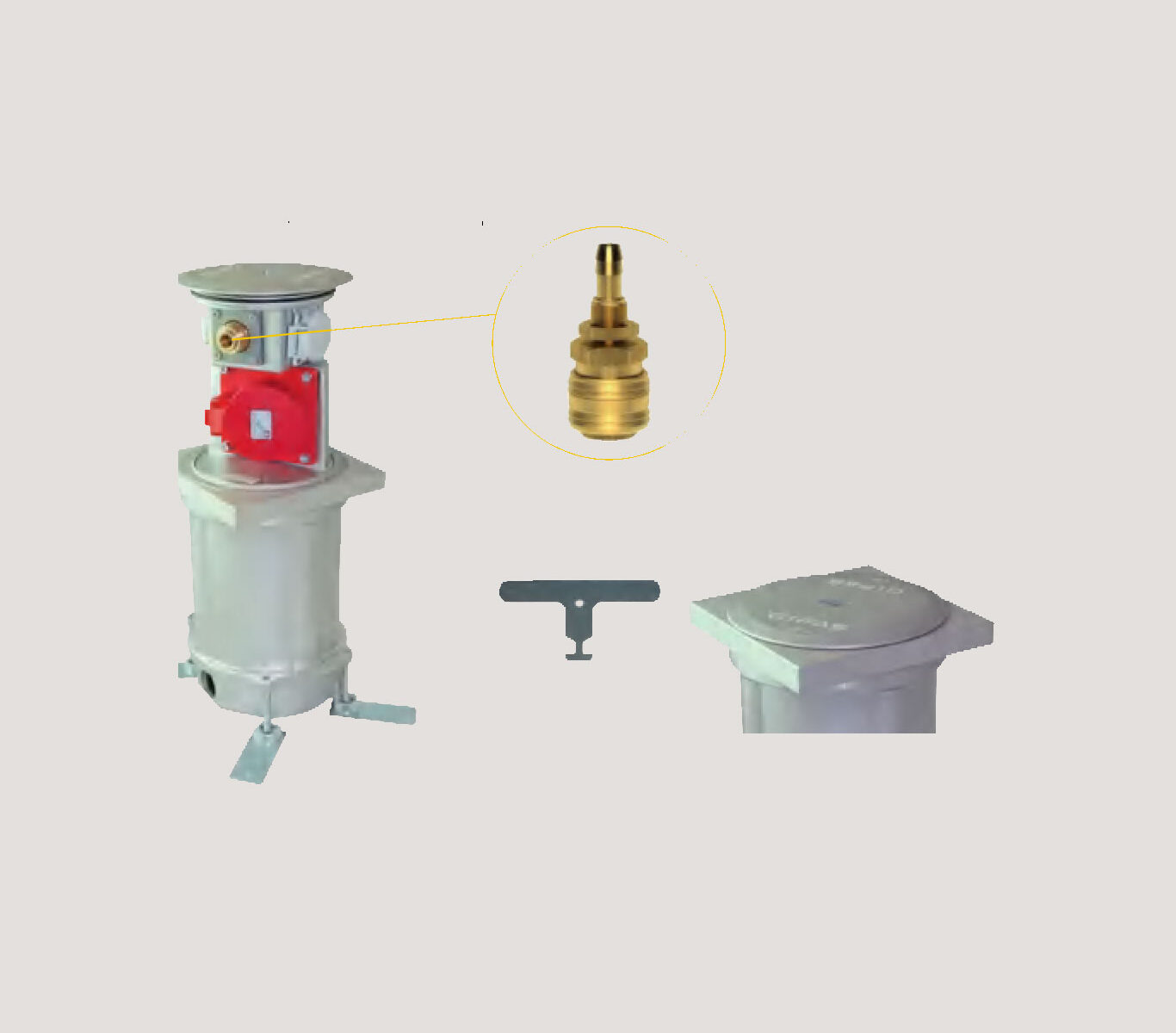

Masso 8010

Micro retraction distributor (Levelling support available optionally)

Technical data

Dimensions (l×w×h): 170×170×255 mm
Mounting depth:
– with levelling support:255 mm
– with threaded pin extension : 255* –355 mm
Material : Aluminium, colourless anodised salt- and seawater-proof
IP protection class:
– in closed mode: IP67, suitable for cleaning with wet sweepers, suitable for drive-over
– plugged in mode:Up to IP54, depending on equipment, suitable for stand-on
Cover : Screwable lid
Cover closure type : Lift grip
Cable outlet : no
Load capacity
– in closed mode: 4 t (40 kN)
Feed-in cable: 3×M32
Level-adjustable after installation:no
Levelling support : yes (optionally)

Remarks / Features

– micro retraction distributor for flush ground mounting
– 3×centre punch marks
– for additional holes ø25 mm and 2×centre punch marks for additional holes ø32 mm in bottom part of housing
– Compressed air connection possible (quick-release coupling Series ES DN 7.2, SLW 6, for Ø 8 mm hose

MASSO 8010 Floor socket outlet ausfahrbar, closed IP67, anodised aluminium, 170×170×255 mm, incl. key, cannot be closed when plugged in

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…)

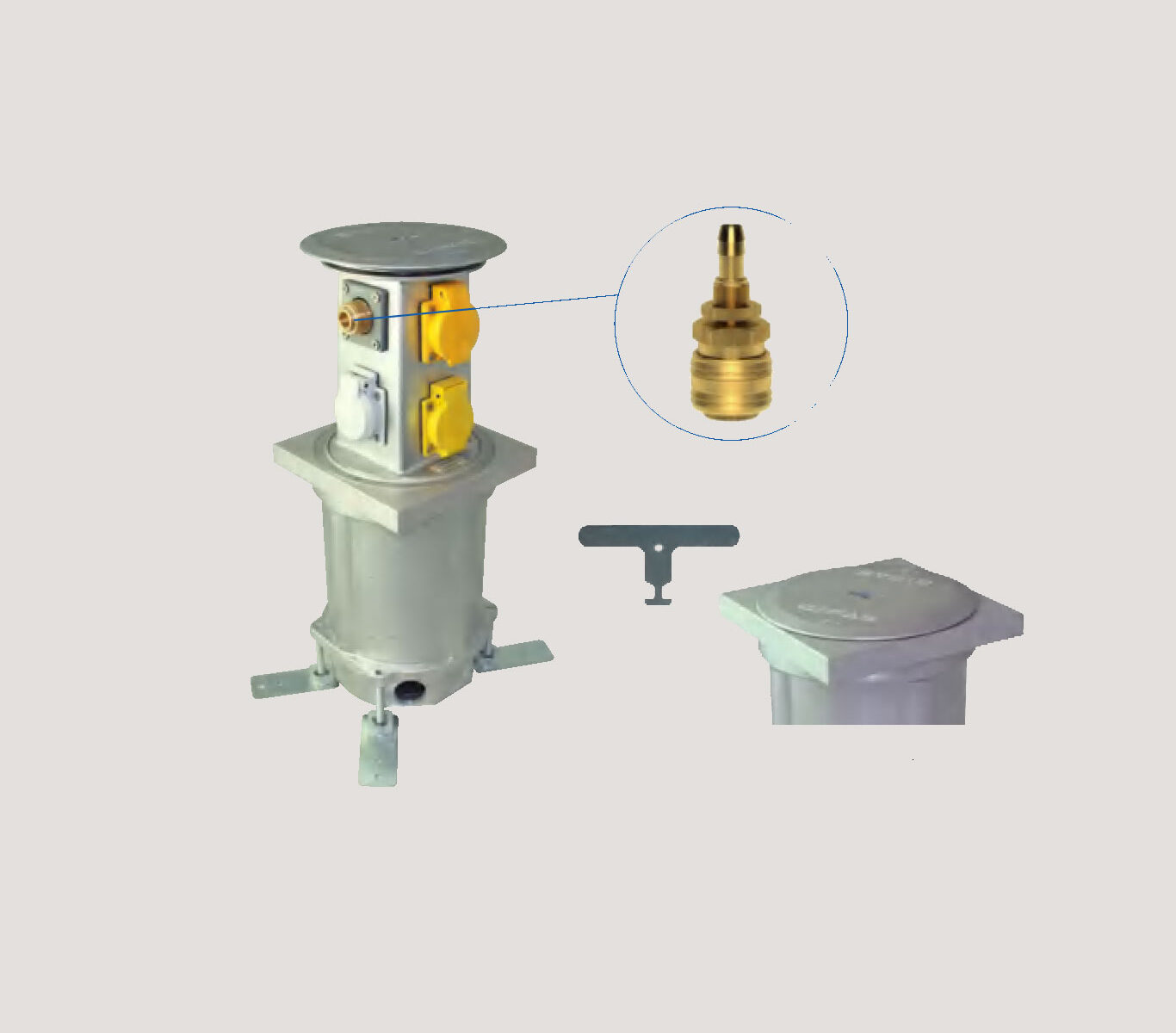

Masso 8000

Micro retraction distributor (Levelling support available optionally)

Technical data

Dimensions (l×w×h): 170×170×255 mm
Mounting depth:
– with levelling support:255 mm
– with threaded pin extension : 255* –355 mm
Material : Aluminium, colourless anodised salt- and seawater-proof
IP protection class:
– in closed mode: IP67, suitable for cleaning with wet sweepers, suitable for drive-over
– plugged in mode:Up to IP54, depending on equipment, suitable for stand-on
Cover : Screwable lid
Cover closure type : Lift grip
Cable outlet : no
Load capacity
– in closed mode: 4 t (40 kN)
Feed-in cable: 3×M32
Level-adjustable after installation:no
Levelling support : yes (optionally)

Remarks / Features

– micro retraction distributor for flush ground mounting
– 3×centre punch marks
– for additional holes ø25 mm and 2×centre punch marks for additional holes ø32 mm in bottom part of housing
– Compressed air connection possible (quick-release coupling Series ES DN 7.2, SLW 6, for Ø 8 mm hose

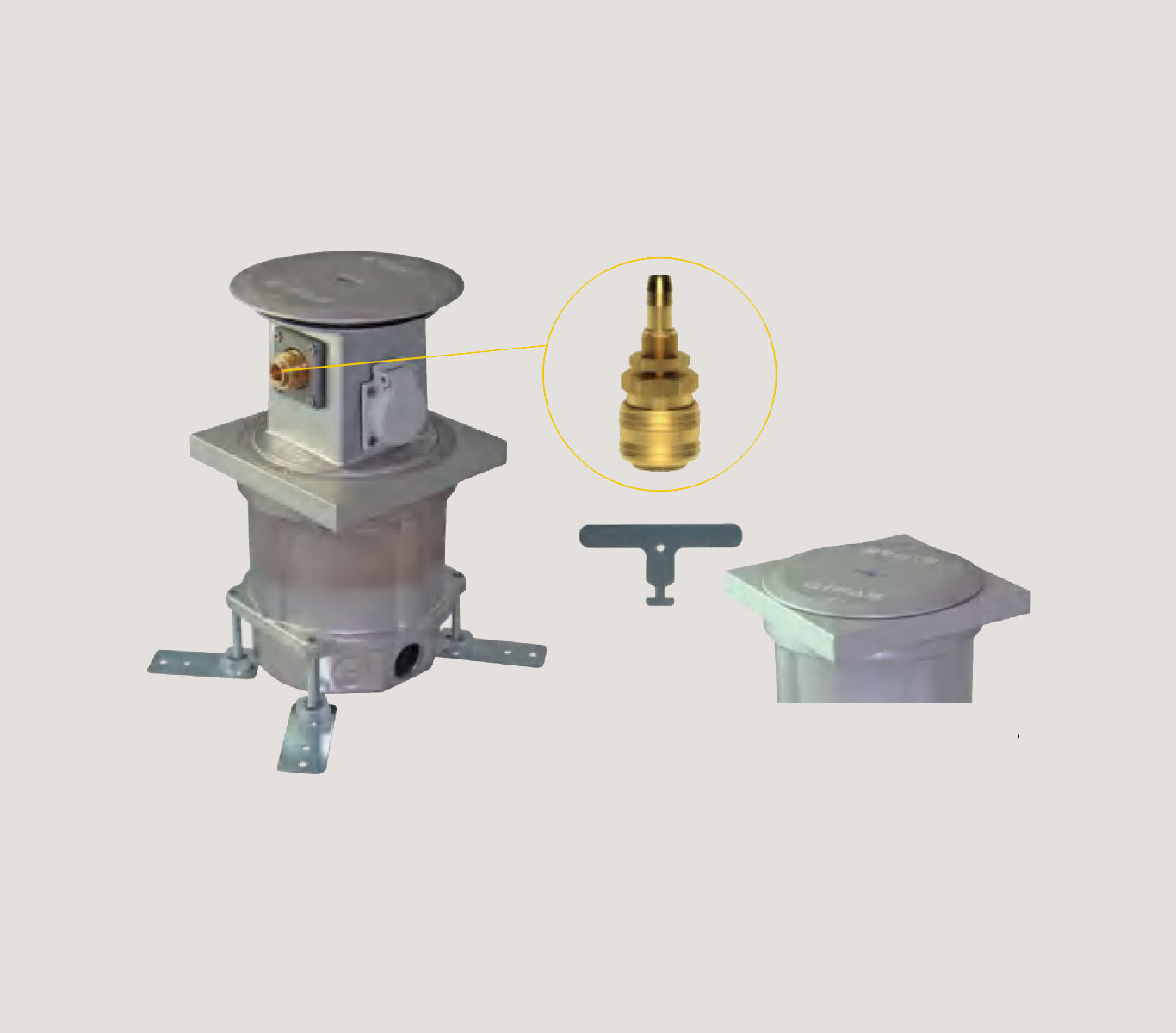

MASSO 8000 retractable floor socket outlet, closed IP67, anodised aluminium, 170×170×255 mm, for outside, incl. key, cannot be closed when plugged in

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…).

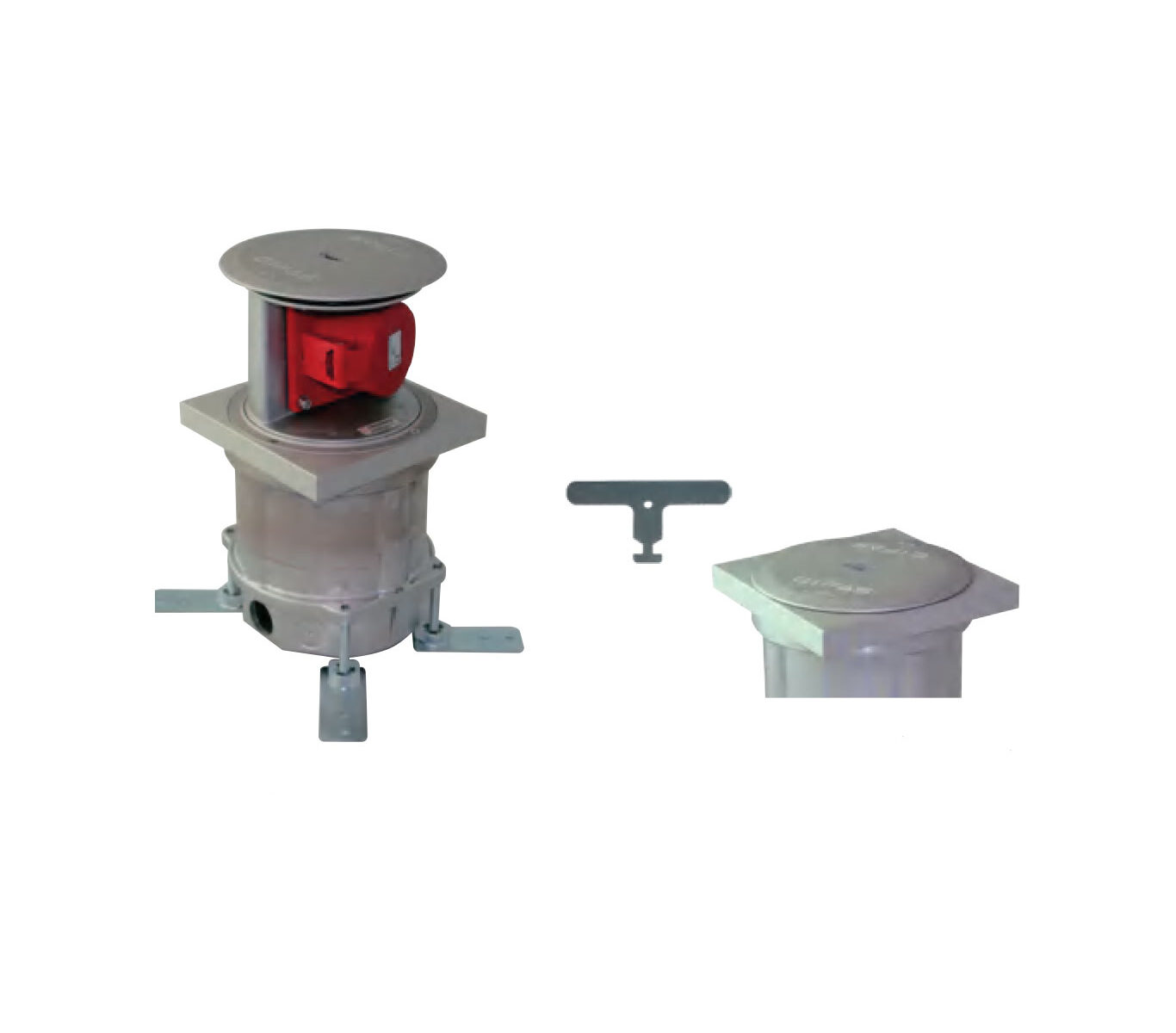

Masso 4010

Micro retraction distributor (Levelling support available optionally)

Technical data

Dimensions (l×w×h): 170×170×190mm
Mounting depth:
– with levelling support:190 mm
– with threaded pin extension : 190* - 290 mm
Material : Aluminium, colourless anodised salt- and seawater-proof
IP protection class:
– in closed mode: IP67, suitable for cleaning with wet sweepers, suitable for drive-over
– plugged in mode:Up to IP54, depending on equipment, suitable for stand-on
Cover : Screwable lid
Cover closure type : Lift grip
Cable outlet : no
Load capacity
– in closed mode: 4 t (40 kN)
Feed-in cable: 3×M32
Level-adjustable after installation:no
Levelling support : yes (optionally)

Remarks / Features

MASSO 4010 Micro retraction distributor, retractable, closed IP67, anodised aluminium, 170×170×190 mm, incl. key, cannot be closed when plugged in

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…).

Masso 4000

Micro retraction distributor (Levelling support available optionally)

Technical data

Dimensions (l×w×h): 170×170×190mm
Mounting depth:
– with levelling support:190 mm
– with threaded pin extension : 190* - 290 mm
Material : Aluminium, colourless anodised salt- and seawater-proof
IP protection class:
– in closed mode: IP67, suitable for cleaning with wet sweepers, suitable for drive-over
– plugged in mode:Up to IP55, depending on equipment, suitable for stand-on
Cover : Screwable lid
Cover closure type : Lift grip
Cable outlet : no
Load capacity
– in closed mode: 4 t (40 kN)
Feed-in cable: 3×M32
Level-adjustable after installation:no
Levelling support : yes (optionally)

Remarks / Features

– micro retraction distributor for flush ground mounting
– 3×centre punch marks
– for additional holes ø25 mm and 2×centre punch marks for additional holes ø32 mm in bottom part of housing
– Compressed air connection possible (quick-release coupling Series ES DN 7.2, SLW 6, for Ø 8 mm hose

MASSO 4000 retractable floor socket outlet, closed IP67, anodised aluminium, 170×170×190 mm, incl. key, cannot be closed when plugged in

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…)

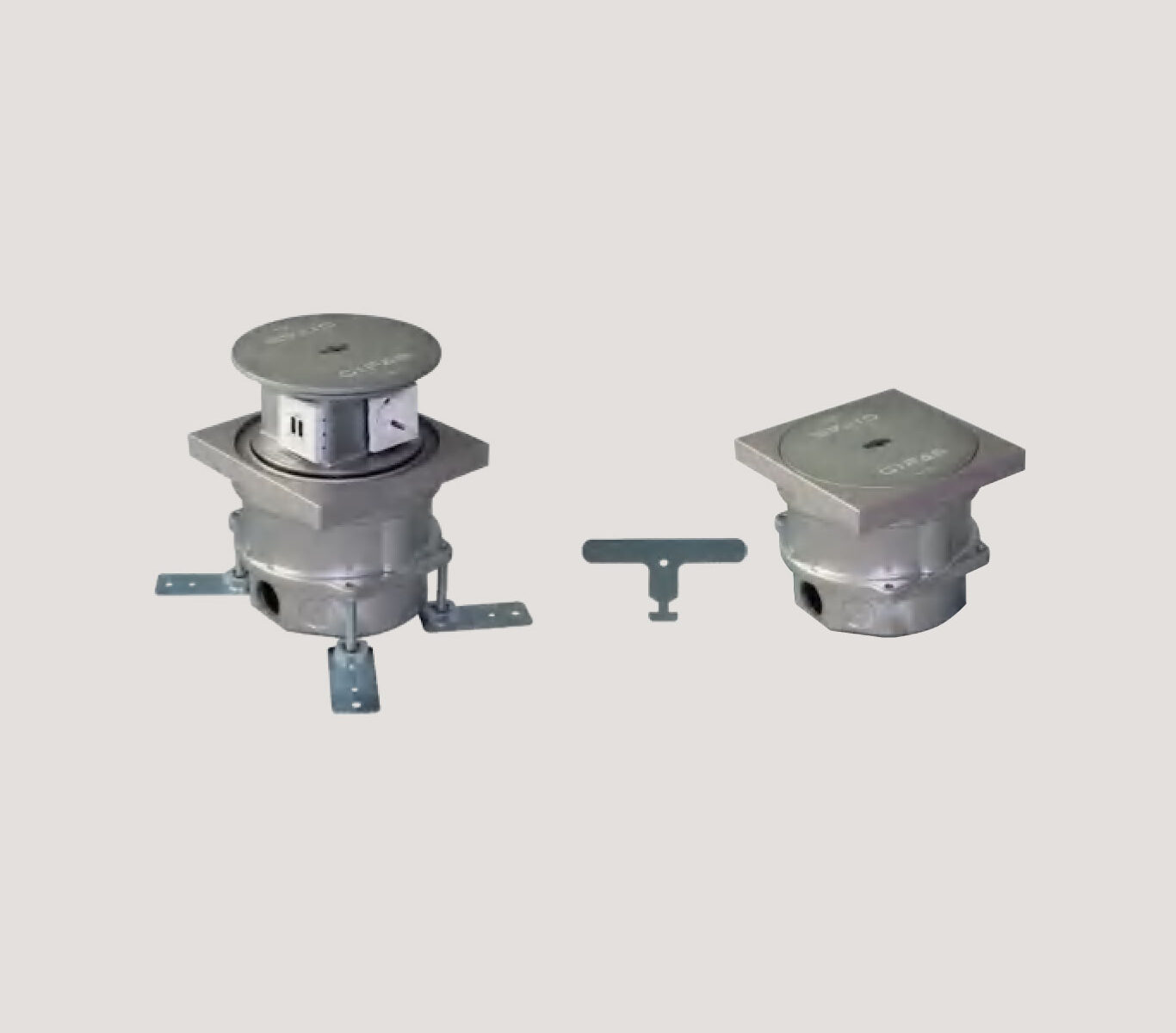

Masso 3000.2

Micro retraction distributor (Levelling support available optionally)

Technical data

Dimensions (l×w×h): 170×170×142 mm
Mounting depth:
– with levelling support:145 mm
– with threaded pin extension : 145* - 245 mm
Material : Aluminium, colourless anodised salt- and seawater-proof
IP protection class:
– in closed mode: IP67, suitable for cleaning with wet sweepers, suitable for drive-over
– plugged in mode: IP20, only dry cleaning, suitable for stand-on
Cover : Screwable lid
Cover closure type : Lift grip
Cable outlet : no
Load capacity
– in closed mode: 4 t (40 kN)
Feed-in cable: 3×M32
Level-adjustable after installation:no
Levelling support : yes (optionally)

Remarks / Features

– micro retraction distributor for flush ground mounting
– for 4×mounting socket insert 45×45×4 mm (e.g. T23, Schuko, RJ45 cat6a, TV, HDMI, USB etc.)
– 3×centre punch marks
– for additional holes ø25 mm and 2×centre punch marks for additional holes ø32 mm in bottom part of housing

MASSO 3000.2 retractable floor socket outlet , closed IP67, anodised aluminium, 170×170×142 mm, incl. key, cannot be closed when plugged in

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…)

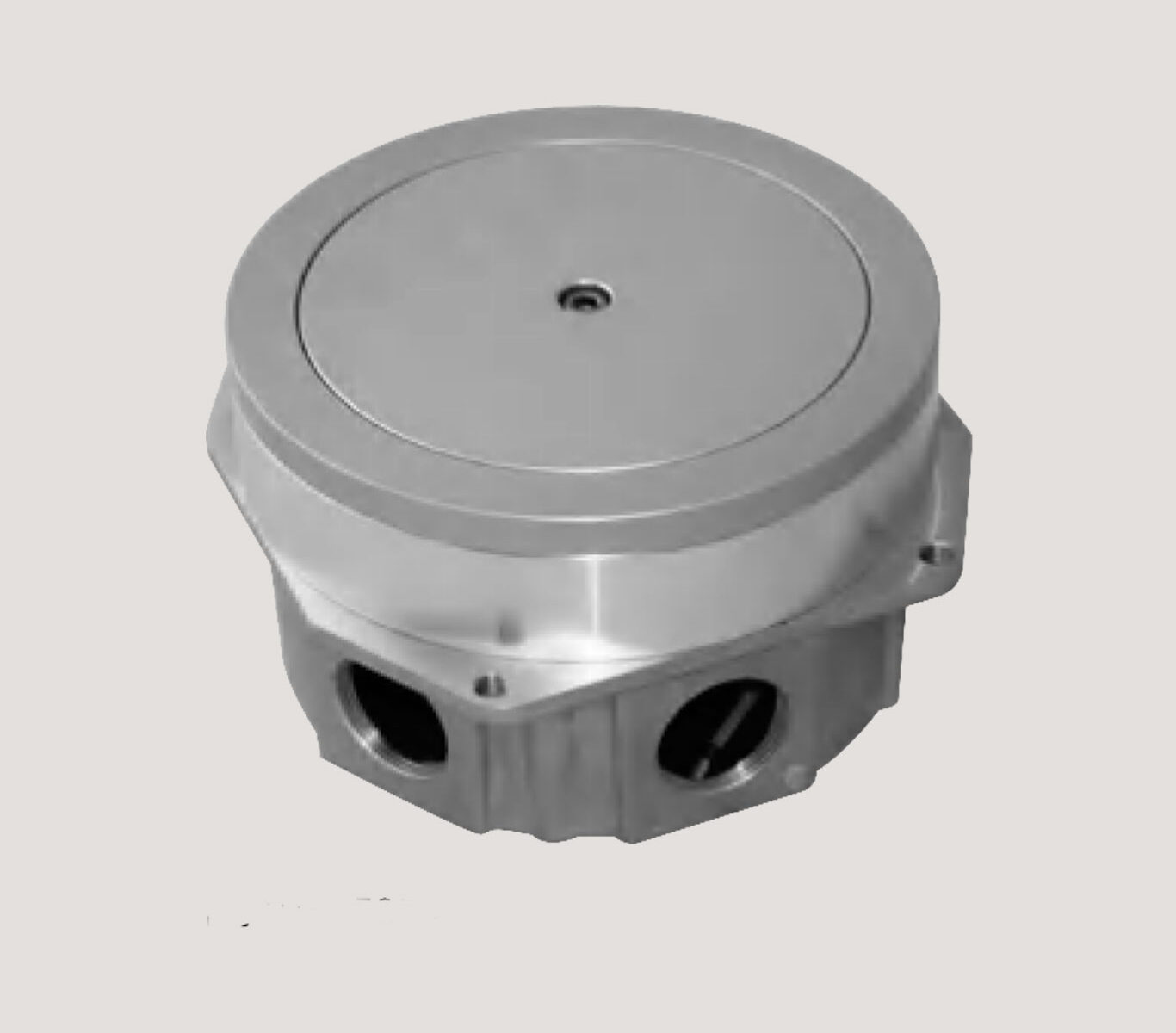

Fonto 5000 / FONTO 5000.R

Floor socket outlet with screwable lid and water protection shroud (Levelling support available optionally)

Technical data

Fonto 5000 (ø×h) : 156×95 mm
Fonto 5000.R (l×w×h*) : 156×156×95 mm
Diameter: 156 mm
Mounting depth : approx. 95 mm (standard version)
– with levelling support:100 mm
– with threaded pin extension: 100* - 205 mm
Material : Aluminium, colourless anodised
IP protection class:
– in closed mode: IP67, suitable for cleaning with wet sweepers
– with fitted water protection pipe: IP67, water hight max. 14 mm
Cover : Screwable lid removable
Cover closure type : Allen key
Cable outlet : yes
Load capacity
– in closed mode: 40 kN
Feed-in cable: 4×M32
Level-adjustable after installation: no
Levelling support : yes (optionally

Remarks / Features

flush mounted floor socket with water protection shroud (if unused, embedded in the floor socket
– for 2×insert 45×45×4 mm and 2×insert 22.5×45×4 mm (e.g. Schu- ko, RJ45, etc.
– water protection pipe sunk into the floor box when not being used
– suitable for stand-on in plugged mode

FONTO 5000 Floor socket outlet with screwable lid and water protec- tion shroud, closed IP67, anodised aluminium, 156×156×95 mm

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…

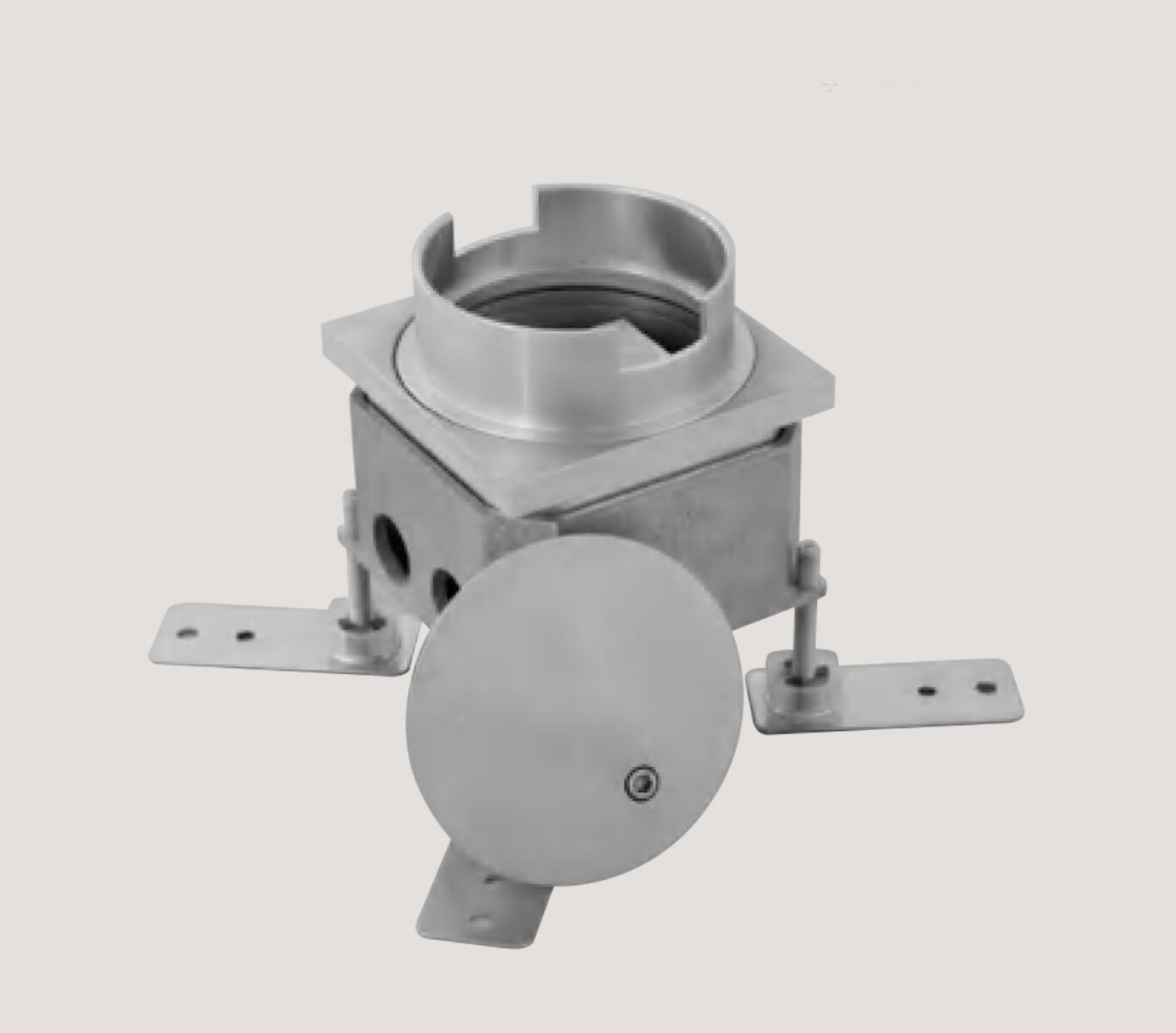

Fonto 4970W

Floor socket outlet with screwable lid, water protection shroud and level-adjustable frame (Levelling support available optionally)

Technical data

Dimensions (l×w×h) : 119×119×83 mm
Mounting depth :approx. 83 mm (standard version)
– level-adjustable: 77 - 89 mm
– with levelling support: 95 - 140 mm
– with threaded pin extension: 95* - 240 mm
Material : Aluminium, colourless anodised (salt- and seawater-proof)
IP protection class:
– in closed mode: IP67, suitable for cleaning with wet sweepers
– with fitted water protection pipe: IP67, water hight max. 18 mm
Cover : Screwable lid removable
Cover closure type : Allen key
Cable outlet : yes
Load capacity
– in closed mode: 2 t (20 kN
Feed-in cable: 2×M25
Level-adjustable after installation: yes (+/–6 mm)
Levelling support : yes (optionally

Remarks / Features

– level-adjustable frame (+/–6 mm) in the offset position for simple adjustment to the finished floor leve
– for 1×insert 45×45×4 mm and 1×insert 22.5×45×4 mm (e.g. Schuko, RJ45, etc.)
– protective cardboard cover to prevent damage during the con- struction phase (integrated in the packaging
– suitable for stand-on in plugged mode
– 2×centre punch marks for additional holes in the bottom of the housing

FONTO 4970W Floor socket outlet with screwable lid and water protec- tion shroud, closed IP67, anodised aluminium, 119×119×83 mm

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…

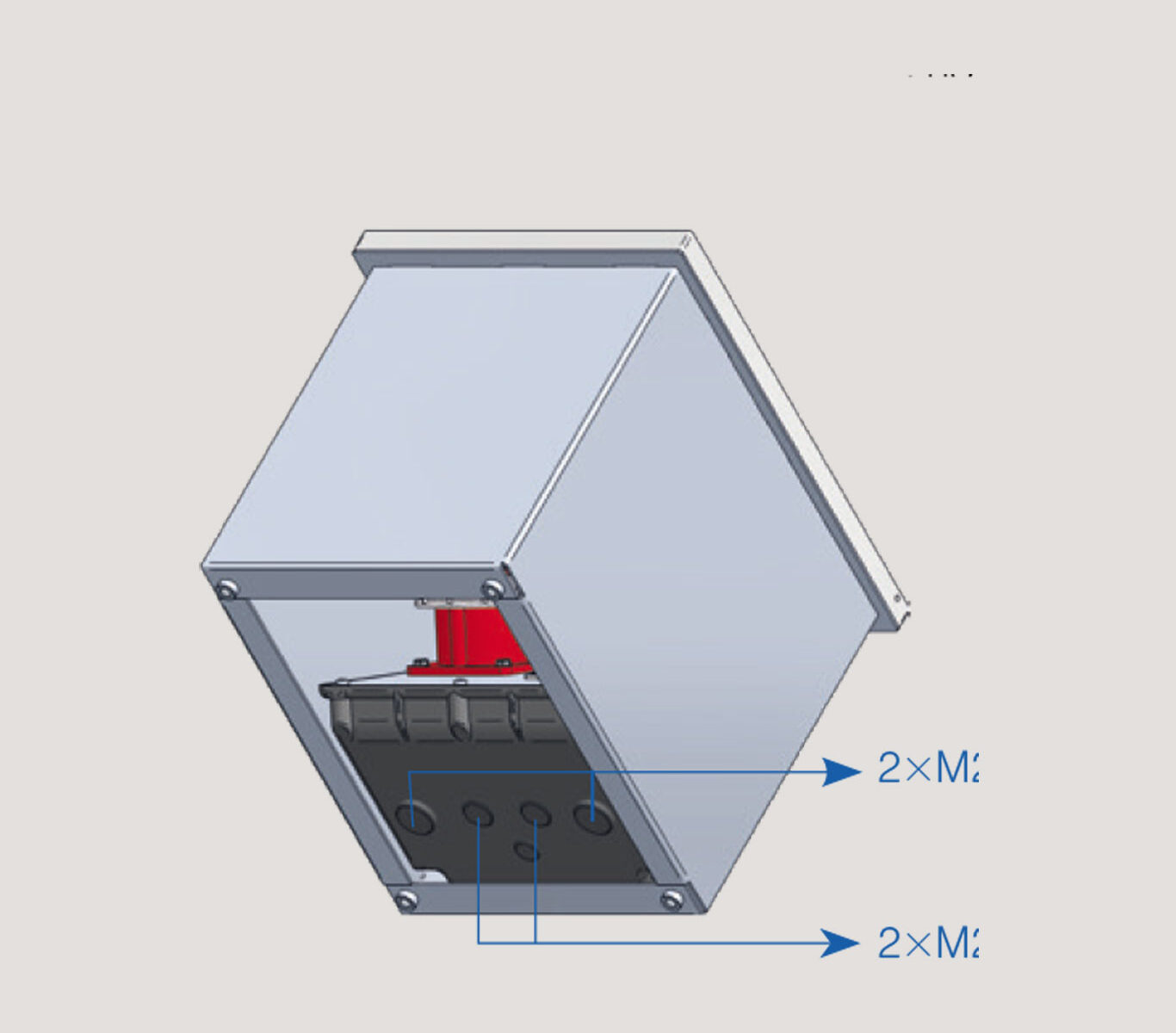

Fonto 9308

Floor socket outlet with removable, fillable cover and 2×cable outlet (Levelling support available optionally)

Technical data

Dimensions (l×w×h) : 320×240×276.5 mm
Mounting depth :276.5 mm(standard version)
– with levelling support: :292 –336 mm
Material
– Cover / frame: Aluminium, colourless anodised (salt- and seawater-proof)
– Housing: V2A (1.4301)
Protection class:IP55 - IP67
– Pay attantion to the drainage
Cover : removable, fillable
Cover closure type :Snap lock
Cable outlet : yes
Load capacity: – in closed mode :5 t (50 kN)
Feed-in cable :2×M20 bottom
2×M25 bottom
Levelling support : yes (optionally

Remarks / Features

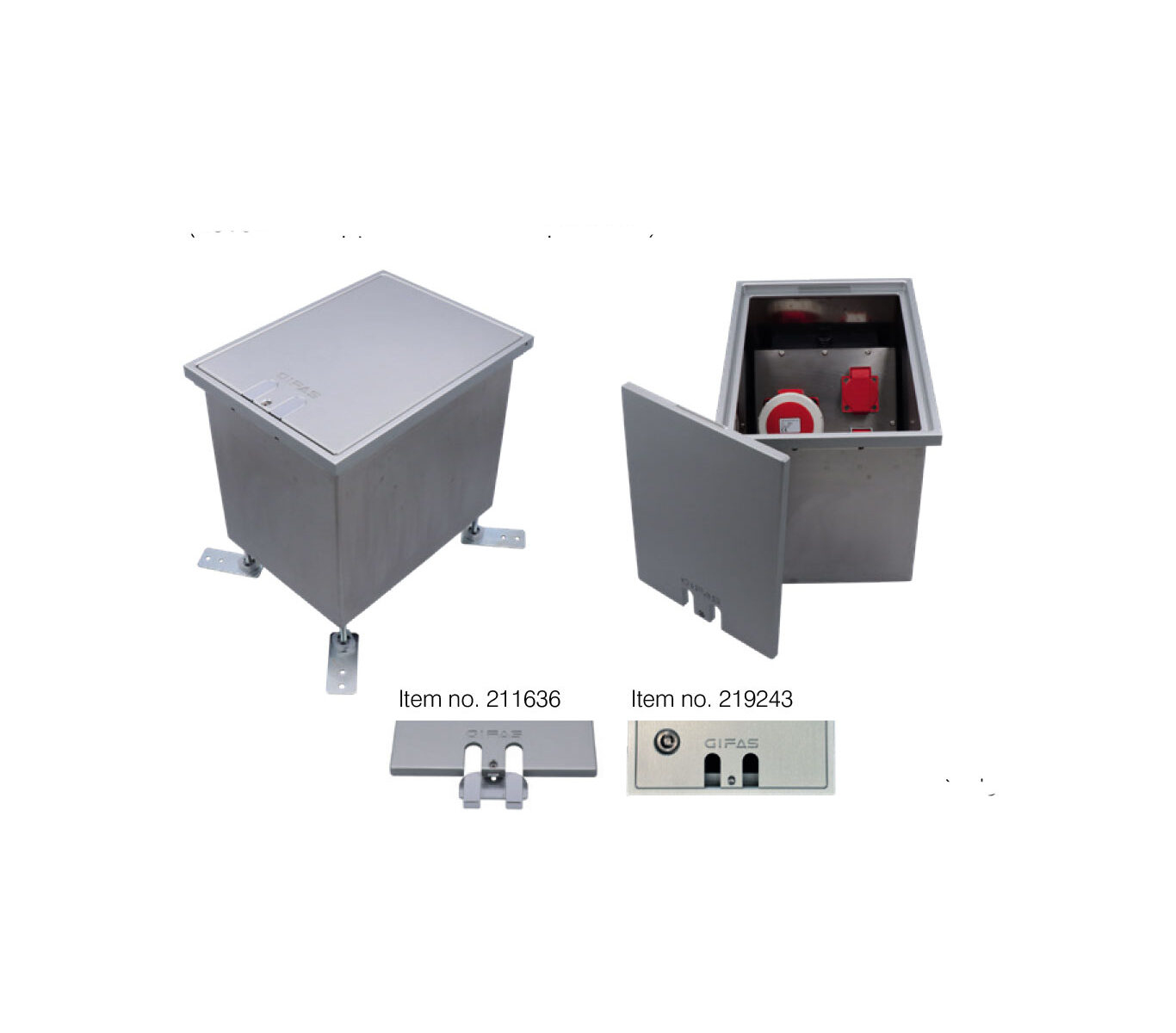

FONTO 9308, Floor socket outlet with cover and cable outlet, closed IP67, 320×240×276.5 mm, aluminium, colourless anodised

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…)

Fonto 9301

Fonto 9308

Floor socket outlet with removable, fillable cover and 2×cable outlet (Levelling support available optionally)

Technical data

Dimensions (l×w×h) : 320×240×276.5 mm
Mounting depth :276.5 mm(standard version)
– with levelling support: :292 –336 mm
Lid depth for floor filling: 7 mm
Material
– Cover / frame: Aluminium, colourless anodised (salt- and seawater-proof)
– Housing: V2A (1.4301)
Protection class:IP55 - IP67
– Pay attantion to the drainage
Cover : removable, fillable
Cover closure type :Snap lock
Cable outlet : yes
Load capacity: – in closed mode :5 t (50 kN)
Feed-in cable :2×M20 bottom
2×M25 bottom
Level-adjustable after installation :yes (+/-5 mm)
Levelling support : yes (optionally

Remarks / Features

FONTO 9308, Floor socket outlet with cover and cable outlet, closed IP67, 320×240×276.5 mm, aluminium, colourless anodised.

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…)

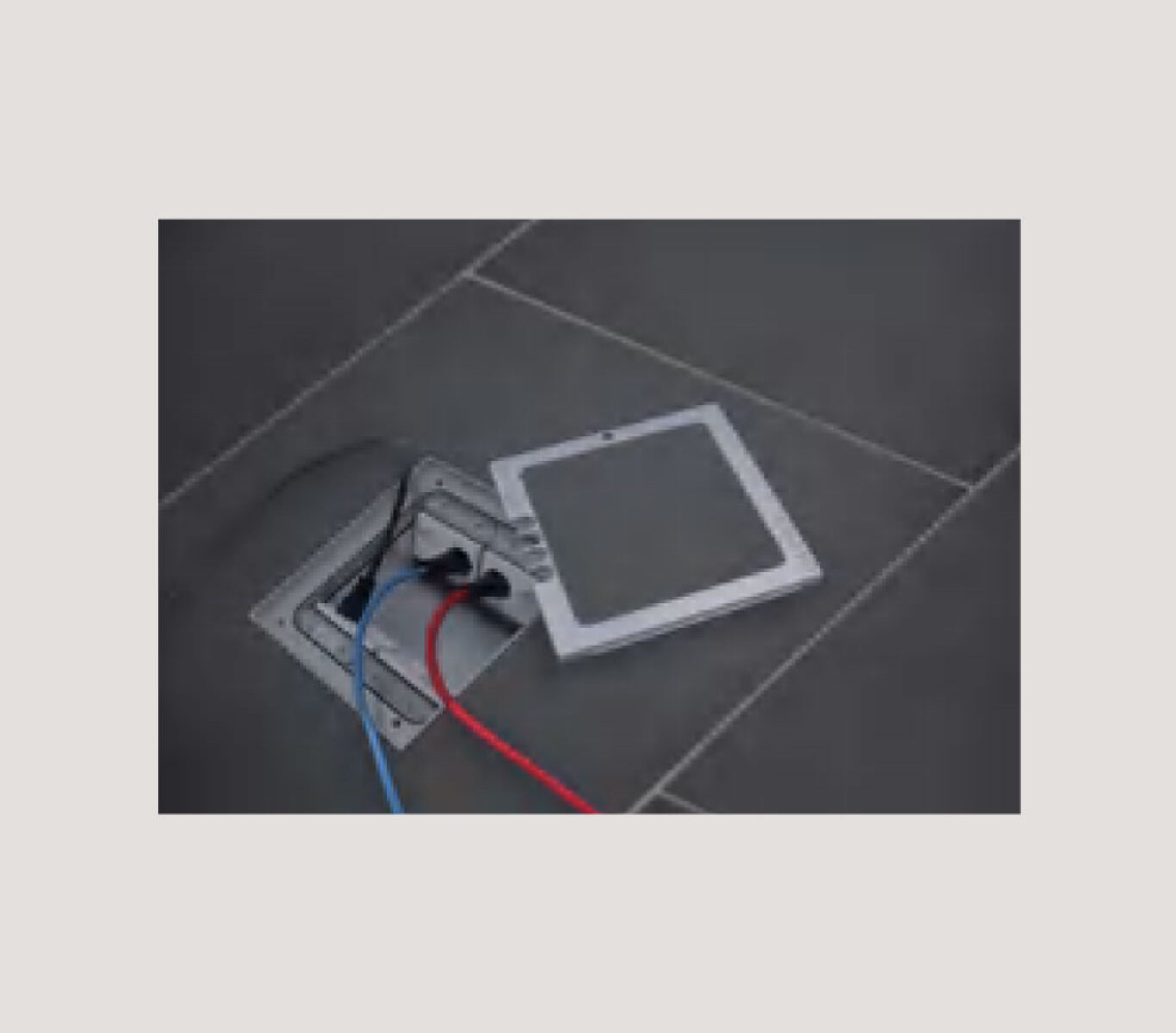

Fonto 8308

Floor socket outlet with removable and fillable cover, level-adjus- table frame, 4×cable outlet (Levelling support available optionally)

Technical data

Dimensions (l×w×h) : 240×240×95 mm
Mounting depth : approx. 95 mm (standard version)
– level-adjustable : 90 - 100 mm
– with levelling support :105 - 150 mm
– with threaded pin extension :105* - 250 mm
Material : Aluminium, colourless anodised salt- and seawater-proof
IP protection class in closed mod : IP65, suitable for cleaning with wet sweepers ;
– plugged in mode : IP20, only dry cleaning
Cover : removable,fillable
Cover closure type :Snap lock
Cable outlet : yes
Load capacity: – in closed mode : 2 t (20 kN)
Feed-in cable :6×M25
Level-adjustable after installation :yes (+/-5 mm)
Levelling support : yes (optionally

Remarks / Features

– level-adjustable frame (+/–5 mm) in the offset position for simple adjustment to the finished floor level
– for 8×mounting socket insert 45×45×4 mm (e.g. T23, Schuko, RJ45 cat6a, TV, HDMI, USB etc.)
– 6×centre punch marks for additional holes in the bottom of the housing
– suitable for drive-over in closed mode

FONTO 8308, Floor socket outlet with cover and cable outlet, closed IP65, 240×240×95 mm anodised aluminium, level-adjustable +/–5 mm

Please note:

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…)
